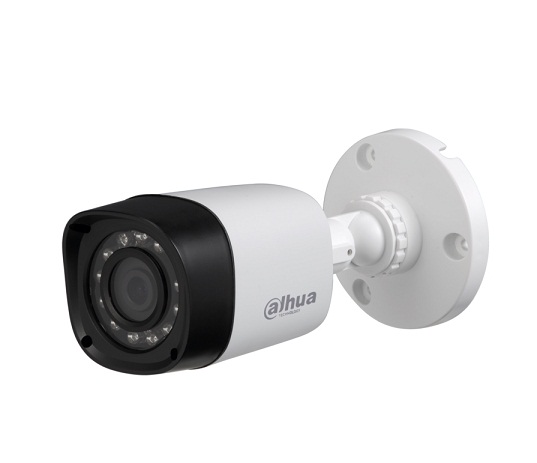

Description Description Dahua HDCVI Camera HAC-HFW-1200RP Features 2Megapixel CMOS 25/30fps@1080P High speed, long distance real-time transmission Day/Night(ICR), AWB, AGC, BLC, 2D-DNR 3.6mm fixed lens Max. IR LEDs length 15m, Smart IR IP67, DC12V Dahua HD Camera HAC-HFW-1200RP Specifications Camera HAC-HFW-1200RP Image Sensor 1/2.7″ CMOS Effective Pixels 1080P, 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000sNTSC: 1/30~1/100000s Minimum Illumination 0.05Lux/F2.0, 0Lux IR on S/N Ratio More than 65dB IR Distance Up to 20m (66feet) IR On/Off Control Auto / Manual IR LEDs 12 Lens Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 3.6mm (2.8mm Optional) Max Aperture F2.0 Angle of View H: 60° (83.4°) Focus Control N/A Close Focus Distance 600mm (500mm)23.6 (19.69) Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0° ~ 360°Tilt: 0° ~ 90°Rotation: 0° ~ 360° Video Resolution 1080P Frame Rate 25/30fps@1080P Video Output 1-channel BNC HDCVI high definition video output / CVBS video output (Can switch) Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC / HLC / DWDR WDR DWDR Gain Control AGC Noise Reduction 2D White Balance Auto / Manual Smart IR Auto / Manual Certifications Certifications CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1 CAN/CSA C22.2 No.60950-1) Interface Audio Interface N/A Eelectrical Power Supply 12V DC ±25% Power Consumption Max 2.8W (12V DC, IR on) Environmental Operating Conditions -40°C ~ 60°C (-40°F ~ 140°F) / Less than 90% RH* Start up should be done at above -40°C (-40°F) Storage Conditions -40°C ~ 60°C (-40°F ~ 140°F) / Less than 90% RH Ingress Protection &Vandal Resistance IP67 Construction Casing Plastic Dimensions 154.3mm×69.8mm×69.8mm (6.07″×2.75″×2.75″) Net Weight 0.20kg (0.44lb) Gross Weight 0.27kg (0.60lb) Datasheet Dahua HD Camera HAC-HFW1200RP Datasheet
