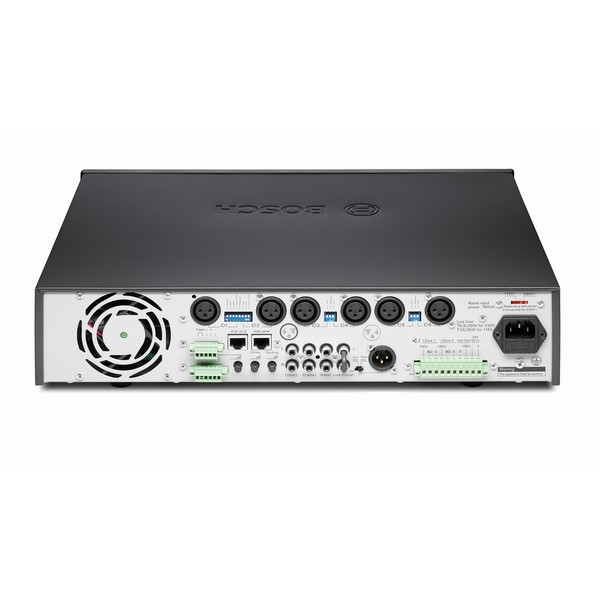

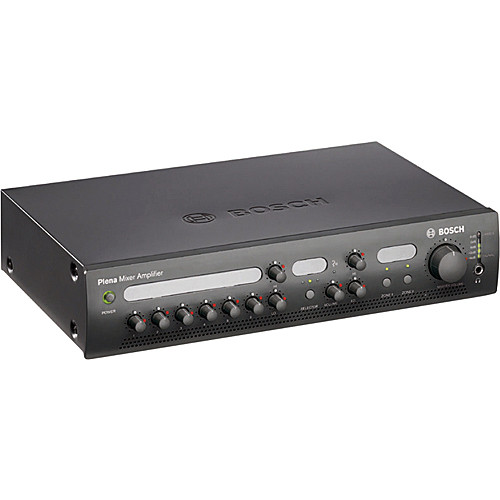

Bosch PLE-2MA120 2 Zone 120W Plena Mixer Amplifier

Description Bosch PLE-2MA120 overview The Bosch PLE-2MA120 Plena Mixer Amplifier is intended to provide 2-zone operations and high output power for background audio PA and commercial audio installations. The amplifier delivers 120 watts of power and 6 microphone / line input channels. The interface is straightforward, making it easy for anyone to operate. The PLE-1MA120 Plena Mixer features adjustable talk over functions for paging applications, and separate volume control for the dedicated music channels. The Bosch PLE-2MA120 Plena Mixer Amplifier is a cost effect, ideal solution for use in retail stores, commercial offices, halls and more. 6 microphone/line inputs plus 3 music source inputs 100 V, telephone and a call station input with priority & VOX 2 zones and announcement only output Voice-activated emergency override 2-tone chime built in (7 more chimes optional with call station) Outputs for line out, music only out and insert point 24 V backup input with built in 24 V charger Separate tone controls for microphones and music sources   Bosch PLE-2MA120 specs Power Supply Voltage: 115 – 230 VAC ±10%, 50/60 Hz Speech filter -3 dB @ 315 Hz, high-pass, Inrush: 8/16A (230/115VAC) Battery Power Supply Voltage 24 VDC, 10% / -15% 6 ACharge current 0.5 ADC Charge float voltage 27.3 VDCtime 2 s Power Consumption 400VA Frequency Response 50Hz to 20kHz ( 1/-3dB @ -10dB ref. rated output) Distortion > 1% @ rated output power, 1kHz Tone Control Bass: Max -12/ 12dB (frequency is setting dependent) Treble: Max -12/ 12dB (frequency is setting dependent) Inputs Mic/line input 6x Input 1 (Push-to-talk contact with ducking functionality) 5-pin Euro style, balanced, phantom 3-pin XLR, balanced, phantomInput 2-6 (VOX with ducking functionality on input 2) 3-pin XLR, balanced, phantom Music inputs 3x Cinch, stereo converted to mono Emergency / Telephone 1x Connector 7-pin, Euro style pluggable screw terminal Sensitivity Mic/Line: 1 mV (mic); 1 V (line) Music Inputs: 300mV Emergency / Tel: 1V max (tel), 100V max (100V0 Signal to Noise Ratio Mic/Line Input: 63dB (flat at max volume), >5dB (flat at min volume/muted) Music Inputs: > 70dB (flat at max volume), > 75dB (flat at min volume/muted) Dynamic Range 93dB Phantom Power 16V via 1.2k ohm (mic) Download Data Dheet
